AS & AT SERIES Work Grippers
Low profile, lightweight design using a self-contained air cylinder only requires piping for air. Quick installation for drilling machines or machining centers. High gripping force and concentricity from wedge actuated jaws. Thru-hole available for part component entry or for design of rear air blast for chip (or swarf) removal. New extended working range. Optional Lock Valve Unit allows the chuck to be used as clamping unit without need for continuous air feed supply.
- Functionally Flexible
- High Gripping Force
- Low Profile, Lightweight Design
- Thru-Hole
- Quick and Easy Installation
- Uses Standard Soft or Hard Jaws
LV-2 Air Lock Valve Option
Maintains Pressure if Loss of supply occurs.
SPECIFICATIONS
MODEL |
UNIT |
AS04 |
AS06 |
AS08 |
AS10 |
AT04 |
AT06 |
AT08 |
AT10 |
Jaw Stroke (Diameter) |
in. |
0.205 |
0.205 |
0.248 |
0.248 |
0.205 |
0.205 |
0.248 |
0.248 |
Gripping Force @ air pressure 6 kg/cm 2 |
kN (kgf) |
7.5 (765) |
21 (2140) |
33 (3365) |
48 (4895) |
7.5 (765) |
21 (2140) |
33 (3365) |
48 (4895) |
Weight with Soft Blank Top Jaws |
lbs. |
16 |
35 |
61 |
94 |
15 |
33 |
59 |
90 |
Max. Operation Pressure |
psi |
100 |
100 |
100 |
100 |
85 |
85 |
85 |
85 |
Matching Soft Top Jaw |
|
SB04B1 |
SB06B1 |
SB08B1 |
SB10A1 |
SB04B1 |
SB06B1 |
SB08B1 |
SB10A1 |
Gripping Diameter |
max. in. |
4.331 |
6.496 |
8.268 |
10.000 |
4.331 |
6.496 |
8.268 |
10.00 |
min. in. |
0.394 |
0.906 |
1.181 |
1.969 |
0.394 |
0.906 |
1.181 |
1.969 |
Dia. A |
in. |
5.827 |
7.992 |
9.764 |
11.811 |
5.827 |
7.992 |
9.764 |
11.811 |
Dia. B |
in. |
4.331 |
6.496 |
8.268 |
10.000 |
4.331 |
6.496 |
8.268 |
10.000 |
Dia. C (H7) |
in. |
0.787 |
0.984 |
1.417 |
1.969 |
|
0.984 |
1.417 |
1.969 |
Dia. D |
in. |
|
0.787 |
1.181 |
1.693 |
|
0.787 |
1.181 |
1.693 |
E |
in. |
3.543 |
3.740 |
4.173 |
4.331 |
3.543 |
3.740 |
4.173 |
4.331 |
F |
in. |
0.591 |
0.591 |
0.591 |
0.630 |
0.591 |
0.591 |
0.591 |
0.630 |
G* |
in. |
2.972 |
4.055 |
4.941 |
5.807 |
2.972 |
4.055 |
4.941 |
5.807 |
in. |
(4.350) |
(5.433) |
(6.319) |
(7.185) |
(4.350) |
(5.433) |
(6.319) |
(7.185) |
H |
in. |
1.063 |
1.417 |
1.654 |
1.811 |
1.063 |
1.417 |
1.654 |
1.811 |
J |
in. |
2.165 |
2.835 |
3.740 |
4.331 |
2.165 |
2.835 |
3.740 |
4.331 |
K |
in. |
0.906 |
1.220 |
1.378 |
1.575 |
0.906 |
1.220 |
1.378 |
1.575 |
Dia. L |
in. |
5.118 |
7.283 |
9.055 |
11.024 |
5.118 |
7.283 |
9.055 |
11.024 |
Dia. M |
in. |
0.354 |
0.433 |
0.433 |
0.512 |
0.354 |
0.433 |
0.433 |
0.512 |
N |
in. |
|
M8 |
M8 |
M10 |
|
M8 |
M8 |
M10 |
P |
in. |
|
2.165 |
2.677 |
3.346 |
|
2.165 |
2.677 |
3.346 |
Q |
in. |
|
0.709 |
0.984 |
1.181 |
|
0.709 |
0.984 |
1.181 |
R |
in. |
1.693 |
2.756 |
3.543 |
4.331 |
1.693 |
2.756 |
3.543 |
4.331 |
S |
in. |
1.299 |
1.299 |
1.299 |
1.299 |
1.299 |
1.299 |
1.299 |
1.299 |
T |
in. |
1.339 |
2.362 |
3.150 |
3.740 |
1.339 |
2.362 |
3.150 |
3.740 |
U |
in. |
0.591 |
0.591 |
0.591 |
0.591 |
0.591 |
0.591 |
0.591 |
0.591 |
*Dimension within ( ) includes air lock valve (optional).

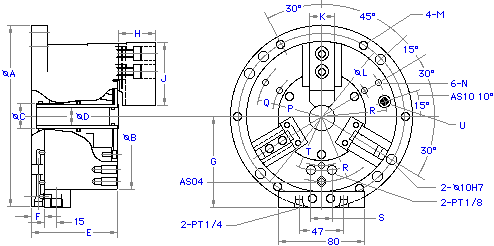

AS DIMENSIONAL DRAWINGS

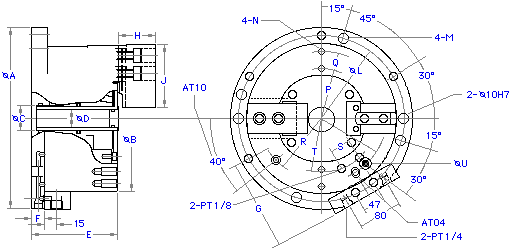

AT DIMENSIONAL DRAWINGS
|
