YW SERIES Exclusive Cylinder for HW Series Chucks

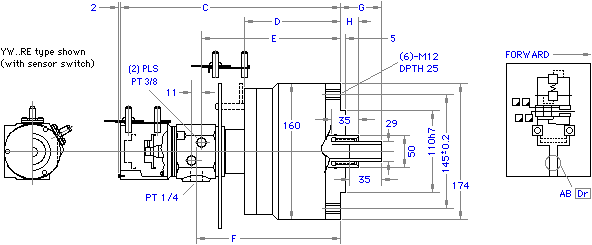

DIMENSIONS

MODEL A B C D E F G max. G min. H max. H min.
YW1220R(E) 20 20 276 (331) 168 231 237 61 41 36 16
YW1225R(E) 25 25 286 (341) 178 241 247 56 31 36 11



SPECIFICATIONS

MODEL Piston stroke IN Piston Area: Push side IN2 vs.Pull side IN2 Draw bar Pull side kN (kgf) Max Operation Pressure PSI Total leakage g/min Max. speed min-1 (r.p.m.) Net Weight GD2 lb Moment of Inertia kg.m 2
YW1220R(E) .787 4.84 vs. 4.45 31 (3161) 434 0.2 5000 35.9 .043
YW1225R(E) .984 4.84 vs.4.45 31 (3161) 434 0.2 5000 36.3 .045

Draw bar pull force: Pressure 3.OMPa(30.6kgf/cm2). Total leakage: Pressure 3.OMPa(30.6kgf/cm2) and oil temperature 50C°. (R) version does not include prox. switches or sensor housing.
